LED Downlight 38° Square 7W CW
Product code: ALDLS38CW-S-7W
7 W
570 lm
20 000 h
Product Support
In case you have any questions about our products or requests please feel free to contact us.
Warranty
3 year(s)
EAN
5999097920580
Carton EAN
5999097920597
Material
PC+PC
Lifespan
20 000 h
Color
White
Technology
LED
Socket
Cable
Power
7 W
Equivalent wattage
51 W
Voltage
230 V
Voltage range
220-240 V
Cable length
0,15m m
DIP angle
+45° / -45 °
Socket type
Integrated

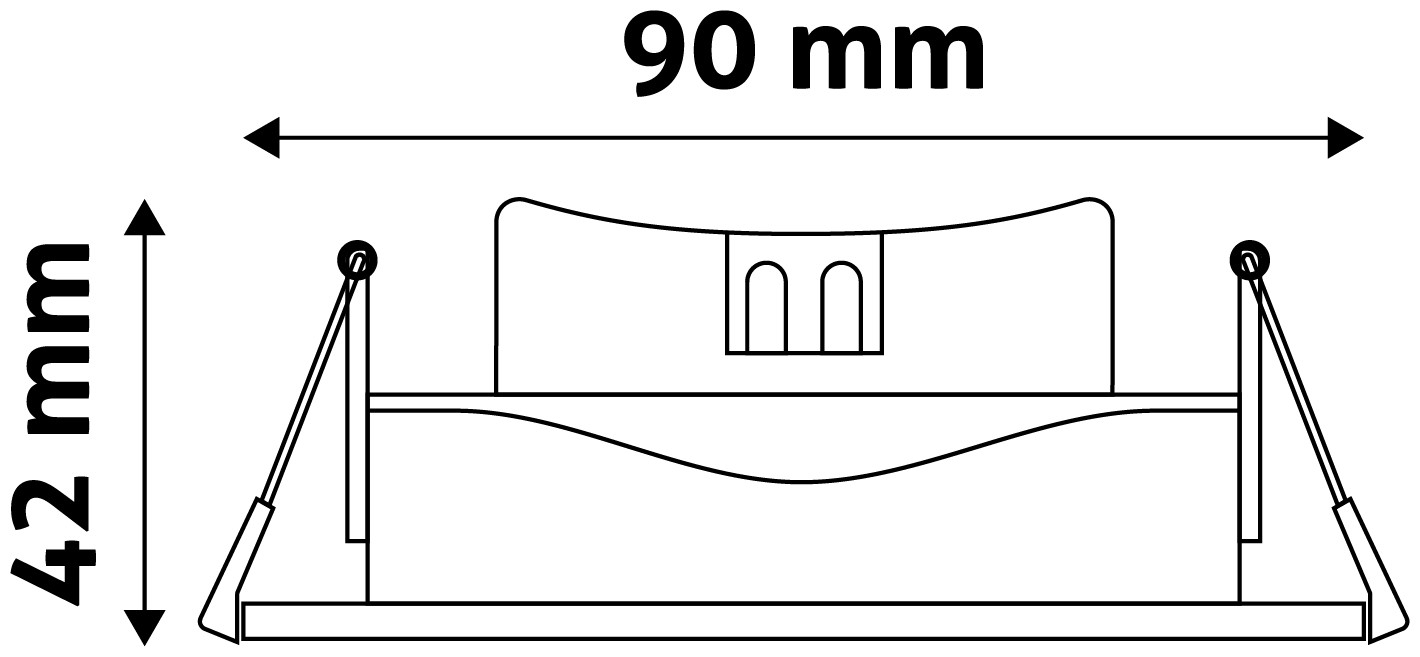

Depth
42 mm
Working temperature
-20 -+40°c
IP Class
IP20
Cutout size
75-85mm mm
Diameter
90 mm
Length
90 mm
Width
90 mm
Height
42 mm
Chip type
SMD2835
Dimmable
No
Swivel
Yes
Color temperature
6 400 K
Changeable Color Temperature
No
Lumen/Watt
81lm/w lm/W
Color temperature
CW
Color rendering index
80
Lumen output
570 lm
Beam angle
38 °
No information
CTN
9405114090
Packaging size
105mm x 105mm x 56mm
Weight
81 gram
Gross volume
536,25 cm³
Carton size
520mm x 275mm x 375mm
Pcs / carton
100
No information
Detailed description
The Avide spot lamps can be recessed into suspended ceilings and can be fixed easily. The internal part of the frame can be tilted, thus the light of the installed lamp can be directed in the preferred angle for maximum light utilization. Its light is directed, emitting light at an angle of 38 ° in a focused way. Also ideal for lighting narrower spaces, including kitchen counters and cabinets with a mirror. Available both in round and square form.
