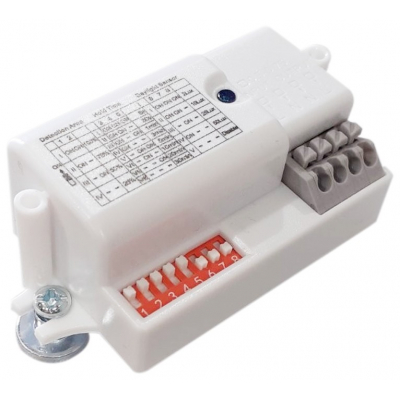

Microwave Sensor for UFO Ceiling Lamps with 8 switches

Our products

EAN

5999097907901

Warranty

3 year(s)

No information

Changeable Color Temperature

No

Power

400 W

Voltage range

220-240 V

Working temperature

-20 - +40 °C

IP Class

IP20

Length

63 mm

Width

35,5 mm

Height

24 mm

Functions

Settings: Detection Area 10%-50%-75%-100%, Hold time 5s-90s-5m-15m, Daylight sensor 2Lux-10Lux-50lux-disable.

Dimmable

Yes

CTN

94051190

Packaging size

35mm x 39mm x 77mm

Weight

39 gram

Gross volume

105 cm³

Carton EAN

5999097907918

Carton size

340mm x 215mm x 230mm

Microwave Sensor for UFO Ceiling Lamps with 8 switches

Detailed description

Microwave motion sensors emit a signal and monitor the reflections caused by moving objects, so depending on the set sensitivity, they can detect motion even through doors, glass or even thinner walls (plasterboard) up to a distance of 8 meters. The sensor may also be placed under the lampshade without loss of efficiency.

1. Sensitivity

Sensitivity may be adjusted with the combination of the 1st and 2nd switches, adopted to the different environments in which it is used.

I – 100%

II – 75%

III – 50%

IV – 10%

x - OFF

o - ON

	1	2
I	o	o	100%
II	o	x	75%
III	x	o	50%
IV	o	o	10%

2. Lighting duration

Using the 3rd and 4th switches, we can set

how long the light should remain active after the

last motion detection.

I – 5 s

II – 90 s

III – 5 min

IV – 15min

x - OFF

o - ON

	3	4
I	o	o	5 s
II	o	x	90 s
III	x	o	5 min
IV	o	o	15 min

3. Light detection

The combination of the 5th and 6th switches can be used to set

the operating mode in line with the different light conditions. If light detection is switched off,

the light will always turn on if there is motion.

II – Switched off

II – 50 Lux

III – 10 Lux

IV – 2 Lux

x - OFF

o - ON

	5	6
I	o	o	Disable
II	o	x	50 Lux
III	x	o	10 Lux
IV	o	o	2 Lux
